BROWN FUSED Alumina

Brown Fused Alumina(BFA) yog cov khoom siv refractory uas yog tsim los ntawm smelting thiab refinement ntawm Calcined Bauxite nyob rau hauv ib tug hluav taws xob arc rauv los yog tsau rauv ntawm kub siab tshaj 2000 degree. Nws tseem hu ua electro corundum, xim av corundum thiab xim av aluminium oxide, tau txais cov ntxhia pob zeb thaum sib xyaw. Cov khoom tseem ceeb yog alumina Al₂O₃. Nws muaj cov yam ntxwv zoo crystallization, zoo toughness, tsis tshua muaj linear expansion coefficient, thiab corrosion kuj. Ua ke nrog qhov zoo ntawm purity siab, ecologically huv thiab tsis tshua muaj zog cov ntaub ntawv, Brown fused alumina yog dav siv nyob rau hauv zus tau tej cov abrasives, refractory thiab nyob rau hauv qhuav- thiab ntub-blasting daim ntaub ntawv qhov twg nws yog reusable. Meanwhile, Brown fused alumina yog dawb ntawm tsis respirable crystalline silica (SiO₂).

TYPICAL PHYSICAL PROPERTIES:

Lub ntiajteb txawj nqus: 3.94 g / cc

Melting Point: 2020 degree

Crystal Structure: -Alumina

Xim: Xim av

Pom tseeb Porosity: 3.55%

Pom tseeb qhov ceev: 3.82 g / cm³

Reversible Linear Expansion: 1.42% ntawm 1400 degree

MESH	METRIC (mm)	MESH	METRIC (mm)
3/4" x 5/16"	19.1 - 8.00	20 x 40	0.850 – 0.425
5/16" x 4	8.00 - 4.75	40 x 200	0.425 – 0.075
4 x 10	4.75 - 2.00	TPF II	-0.212
10 x 20	2.00 – 0.850	200 MF	-0.075
10 x 40	0.850 – 0.425	325 mf ua	-0.045

Thaum nws los txog rau tus nqi zoo, xim av fused alumina yog thawj qhov kev xaiv ntawm cov khoom ntxhia pob zeb.

Cov khoom siv refractory----xim av fused alumina, ntau dua 95% Al₂O₃, nrog rau seem xuab zeb, grain-loj xuab zeb; hmoov zoo thiab micro hmoov. Nws muaj ntau pua daim ntawv thov raws li cov khoom zoo li tus lossis tsis zoo li cov khoom siv refractory vim nws muaj peev xwm tiv taus kev sib xyaw ua ke ntawm cov cua sov, corrosion, abrasion thiab cuam tshuam.

Daim ntawv thov:

• Refractory cib; Rwb thaiv tsev cib;

• Refractory Cement; Refractory Castables

• Ramming Mass thiab phom sib tov

• Refractory mortar

• Pobzeb

• Lim daim hlau

• Cov nplej xoob

• Cov khoom ntom ntom, siab kub refractory

Standard qhov ntau thiab tsawg:

Raws li Refractories Grain Sand: 0-1mm, 1-3 hli, 3-5 hli, 5-8 hli, 8-15 hli

Raws li Refractory Fine Powder: -100 Mesh, -200 Mesh, -325 Mesh

Standard ntim:

25kg woven hnab; 1000kg tej hnab loj;

55 lbs woven hnab; 2,200 lbs tej hnab loj

Fused alumina yog cov khoom siv ecological - cov ntsiab lus ntawm Al2O3 hauv cov khoom nyob ntawm seb koj xav tau. Cov ntsiab lus tshuaj tom ntej yog rau cov cib refractory.

Brown Fused Alumina (Grains) Cib 0-1mm, 1-3mm, 3-5mm

Yam ntxwv	Tus nqi	Specification Control
		Min.	Max.
Al2O3	95.3	95	--
Fe2O 3	0.2		0.3
SiO 2	1.0		1.2
TiO 2	2.6		3.0
CaO	0.3		0.4
MgO	0.3		0.4
Sib Nqus Particle	0.03		0.05
Hardness	9 hmo
Specific Gravity	3.8g / cm³ min

Brown Fused Alumina (Zoo) Cib -200 mesh, -325 mesh

Yam ntxwv	Tus nqi	Specification Control
		Min.	Max.
Al2O3	95	94.5	--
Fe2O 3	0.2		0.3
SiO 2	1.2		1.5
TiO 2	2.6		3.5
CaO	0.3		0.4
MgO	0.3		0.4
Sib Nqus Particle	0.03		0.05
Hardness	9 hmo
Specific Gravity	3.8g / cm³ min

Cov txheej txheem ua: Barmac / Roller

Grain Shapes: Angular / Cubic

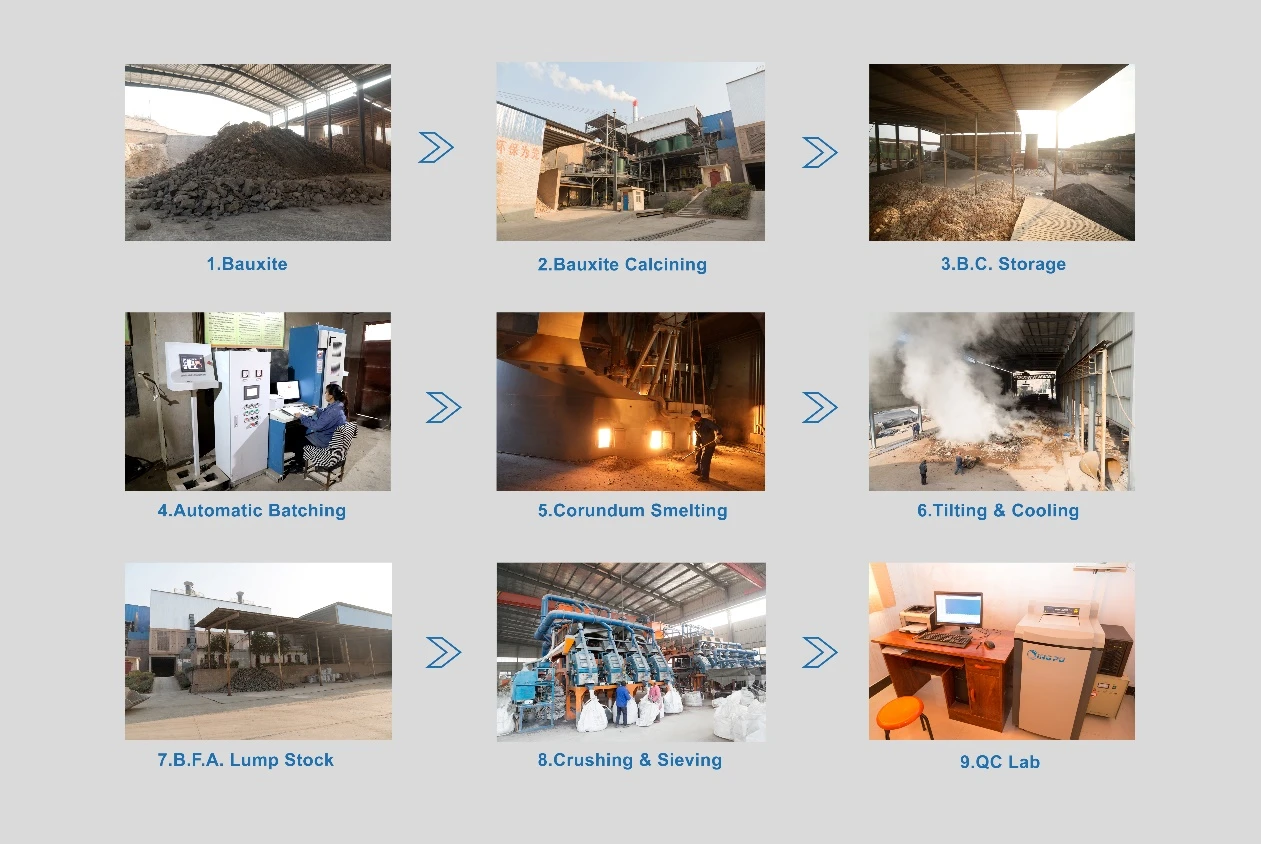

BFA kev tsim khoom tseem ceeb raws li hauv qab no:

Bauxite → Bauxite Calcining → BC Cia → Tsis Siv Neeg Batching → Corundom Smelting → Tilting & Txias → BFA pob khoom → Crushing & Sieving → QC Lab

Brown Fused Alumina rau refractory zoo:
1) Zoo bauxite ua raw khoom
2) Refractory kub yog ntau tshaj 2000 degree
3) Tsis muaj tawg, tsis muaj pulverization thiab tawg nyob rau hauv lub chav kawm ntawm refractory
4) Cov hlau oxide tsawg heev

5) Siab melting point

Vim li cas thiaj xaiv NY TWO Brown Fused Alumina rau Refractory?

1. Muaj peb tus kheej bauxite ore thiab lub Hoobkas, qhov zoo thiab tus nqi sib tw.

2. Peb Brown Fused Alumina Micro Grits muab qhov tsis sib xws hardness thiab durability rau precision daim ntaub ntawv.

3. Lawv ua kom cov khoom tsim tau nrog lawv cov kev ua haujlwm siab thiab zoo heev toughness.

4. Peb ua raws li cov kev tswj xyuas zoo, kom ntseeg tau tias kev ua haujlwm zoo tshaj plaws.

5. Peb cov khoom yog ib puag ncig tus phooj ywg, ua raws li koj lub hom phiaj sustainability yam tsis muaj kev cuam tshuam rau qhov zoo.

Brown Fused Alumina (FAQ)

• Daim foos (zoo li nplej) qhia li cas?

Cov lus piav qhia ntawm cov qoob loo tuaj yeem nyob ntawm "angular" mus rau "acicular" mus rau "spherical". Thaum tus nqi ntawm qhov dimensionless form factor yog 1, lub grain yog spherical. Qhov me me ntawm daim ntawv tseem ceeb, qhov pointier cov nplej.

• Koj puas tuaj yeem tsim raws li cov qauv?

Yog lawm, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.

Xaus:

BFA yog ib yam khoom tsim los ntawm maj mam yaj txo ntawm calcined bauxite nyob rau hauv ib tug hluav taws xob arc rauv ntawm kub (kwv yees li 2000 degrees Celsius). Nws cov tshuaj muaj pes tsawg leeg feem ntau yog Al2O3 (94, 5-97%) thiab vestigial nyiaj ntawm TiO2, SiO2, Fe2O3, CaO thiab MgO.

Brown Aluminium Oxide yog tus cwj pwm los ntawm qhov zoo toughness, siab mechanical resistance thiab hardness (9 hauv Mohs nplai). Lub microhardness ntawm cov khoom ncav cuag li 1900kG / mm2. Specification gravity (density) sib npaug 3,90+/-0,05 g/cm3. Qhov ntom ntom nyob ntawm qhov loj sib npaug 1, 52-1,87 g / cm3. Nws muaj cov thermal conductivity siab thiab qis thermal expansion. Hais txog hluav taws xob nws yog ib qho insulator.

Brown Fused Alumina yog cov khoom siv zoo rau refractories.
