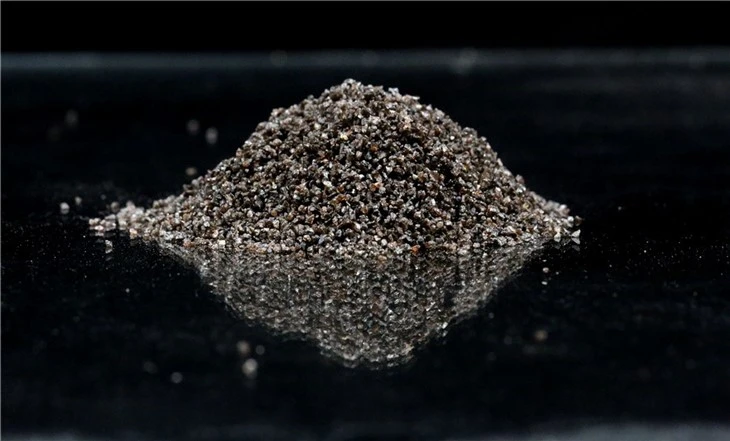

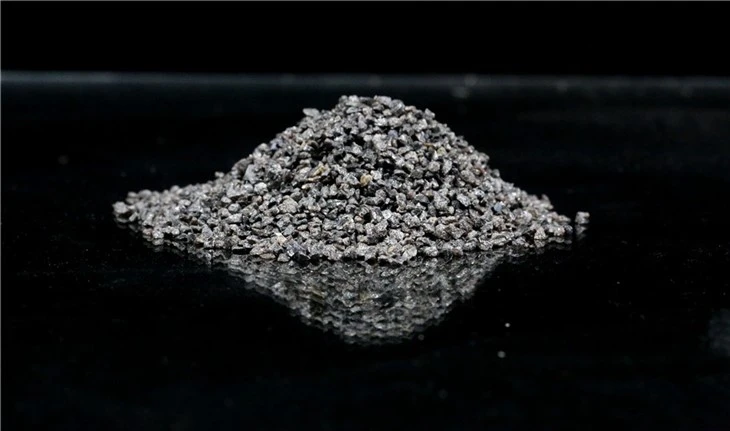

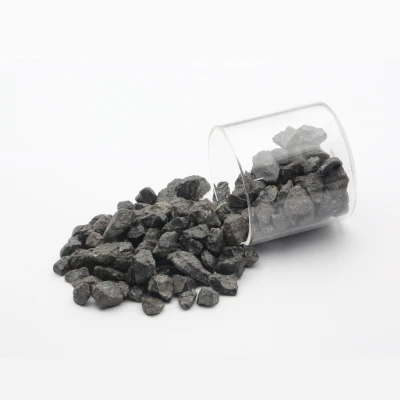

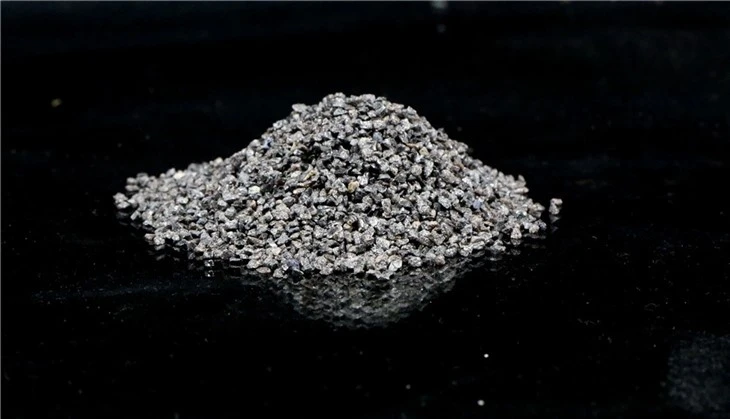

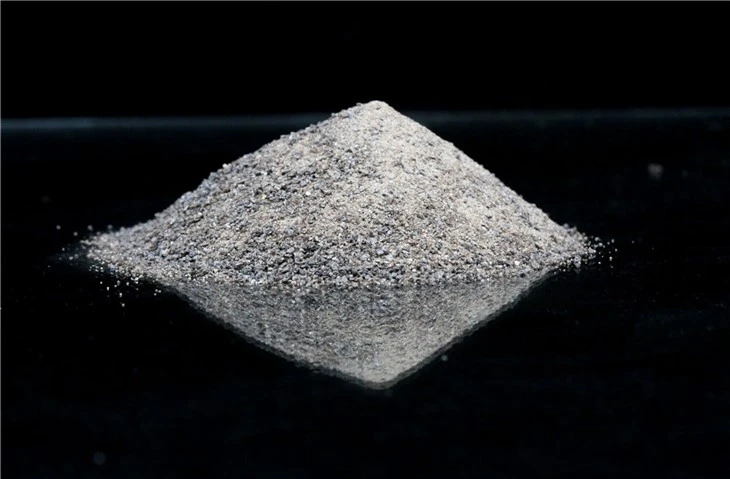

Brown Aluminium Oxide

Brown Aluminium Oxide (Al₂O₃) tseem hu ua Brown Fused Alumina (BFA), muaj npe los ntawm nws cov xim xim av. Nws yog tsim los ntawm fusion ntawm high-zoo Calcined Bauxite nyob rau hauv ib tug hluav taws xob arc rauv ntawm kub kub ntau tshaj 2000 degree. Bauxite siv los ua BFA muaj siab Aluminium Oxide (Al2O3). Tom qab cov txheej txheem fusion, cov ntaub ntawv sib xyaw thiab fused rau hauv cov ntaub ntawv ua kua, ces txias thiab crushed (milled) rau hauv pob qhov ntau thiab tsawg. Cov pob loj me yog tom qab ntawd hauv cov qib finer lossis hmoov thiab ua kom zoo los ntawm cov khoom siv sieving rau hauv cov khoom sib txawv particle rau ntau daim ntawv thov.

Peb lub zog muaj zog compression siab, siab toughness, zoo heev self-sharpening, tsawg coefficient ntawm thermal linear expansion, crystallization zoo, thiab zoo heev hydrophilia thiab huv si. Nws yog cov khoom siv huv, muaj zog siab uas tiv taus oxidation thiab corrosion kuj, tswj cov tshuaj lom neeg ruaj khov, thiab tiv taus qhov kub thiab txias. Nws muaj ntau daim ntawv thov nyob rau hauv cov ntaub ntawv refractory.

Daim ntaub ntawv: Cov duab thiab tsis zoo li cov refractories, cov khoom siv hluav taws xob thiab cov ntaub ntawv

• Cov cib

• ramming thiab phom sib tov

• Pobzeb

• Castables

• Lim daim hlau

• Cov nplej xoob

• Cov khoom ntom ntom, siab kub refractory

Standard qhov ntau thiab tsawg:

Refractory Grit (mm): 0-1, 1-3, 3-5, 5-8, 8-15

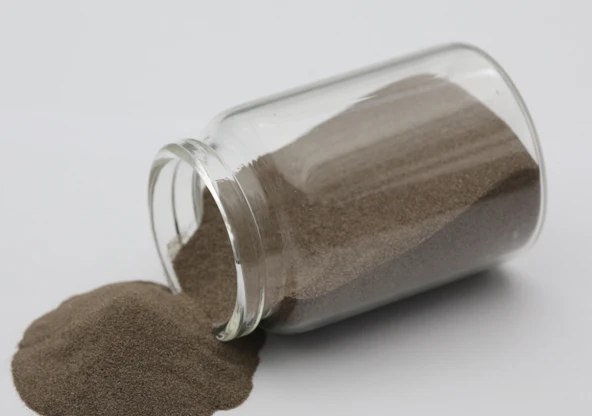

Refractory Powder (Mesh): -100, -200, -325

Standard ntim:

55 lbs (25kg) woven hnab; 2,200 lbs (1000kg) hnab loj

Brown Aluminium Oxide tau raug txheeb xyuas los ntawm ntau lub tuam txhab hauv kev xyaum tias cov khoom no muaj cov yam ntxwv ntawm tsis muaj detonation, tsis muaj pulverization thiab tsis muaj cracking nyob rau hauv daim ntawv thov txheej txheem, uas ua rau nws ua lub high-zoo aggregate thiab muab tub lim ntawm refractory ntaub ntawv los ntawm xim av corundum. . Nws cov khoom siv thermal ua rau nws yog cov khoom siv zoo heev rau kev siv hauv kev tsim cov khoom siv refractory.

Lub ntsiab tivthaiv ntawm xim av aluminium oxide yog alumina, thiab qib kuj yog qhov txawv ntawm cov ntsiab lus txhuas, qhov qis ntawm cov ntsiab lus aluminium yog, qhov qis dua qhov hardness.

TYPICAL PHYSICAL PROPERTIES:

Lub ntiajteb txawj nqus: 3.94 g / cc

Melting Point: 2020 degree

Crystal Structure: -Alumina

Xim: Xim av

Pom tseeb Porosity: 3.55%

Pom tseeb qhov ceev: 3.82 g / cm³

Reversible Linear Expansion: 1.42% ntawm 1400 degree

Xim av fused alumina bauxite li raw khoom, thee, hlau, kub siab tshaj 2000 degrees hitches nyob rau hauv arc smelting, lub zeb sib tsoo yas, sib nqus sib cais rau hlau, tshuaj ntsuam yog muab faib ua ntau yam particle loj, ntom ntom ntom, siab hardness, particle tsim globular, siab consolidation yog tsim rau ua ceramic, resin abrasive thiab sib tsoo, polishing, sandblasting, casting, thiab lwm yam., kuj yuav siv tau rau manufacturing advanced refractories.

Vim nws lub zog siab thiab lwm yam khoom, nws yog siv los cam khwb cia hlau zawv zawg nozzle, smelting tsis tshua muaj hlau, tshwj xeeb alloys, ceramics, blast furnace hauv ob sab phlu (phab ntsa thiab yeeb nkab); Lub cev thiab cov khoom siv tshuaj, lub txim hluav taws xob, cua sov - oxidation - resistant txheej.

NY TWO refractory castables yog ua los ntawm refractory aggregate, refractory hmoov, binder, thiab lwm yam additives, thiab yuav siv tau ncaj qha los yog los ntawm kev ntxiv qhov tsim nyog cov dej los yog lwm yam kua. Thaum cam khwb cia los yog phom rau hauv qhov chaw, cov khoom castable hardens thiab kho kom tsim tau cov khoom ruaj khov thiab ruaj khov hauv ob sab phlu. Refractory castables tuaj yeem ntsia tau siv ntau txoj hauv kev nyob ntawm cov ntawv thov tshwj xeeb thiab cov khoom siv. Xws li casting, phom, troweling, thiab twj tso kua mis.

Xim av Aluminium Oxide (Grains) Castables 0-1mm, 1-3mm, 3-5mm

Yam ntxwv	Tus nqi	Specification Control
		Min.	Max.
Al2O3	95	94.5	--
Fe2O 3	0.2		0.3
SiO 2	1.3		1.5
TiO 2	2.6		3.5
CaO	0.3
MgO	0.3
Sib Nqus Particle			0.5
Hardness	9 hmo
Specific Gravity	3.8g / cm³ min

Brown Aluminium Oxide (Fines) Castables -200 mesh, -325 mesh

Yam ntxwv	Tus nqi	Specification Control
		Min.	Max.
Al2O3	93.5	92	--
Fe2O 3	0.3		0.5
SiO 2	1.3		2.0
TiO 2	3.0		4.5
CaO	0.4		0.5
MgO	0.4		0.5
Sib Nqus Particle			0.5
Hardness	9 hmo
Specific Gravity	3.8g / cm³ min

Brown Aluminium Oxide rau refractory zoo:
1) Zoo bauxite ua raw khoom
2) Refractory kub yog ntau tshaj 2020 degree
3) Tsis muaj tawg, tsis muaj pulverization thiab tawg nyob rau hauv lub chav kawm ntawm refractory
4) Cov hlau oxide tsawg heev

Peb qhov zoo:

1.Peb muaj cov khoom siv raw khoom bauxite ore thiab lub Hoobkas, yog li peb tuaj yeem tswj tau qhov zoo thiab tus nqi zoo.

2.Advanced cov txheej txheem thiab 20 xyoo ntawm kev tsim khoom.

3. Kev khiav tsheb yooj yim.

4. Kev ua haujlwm zoo thiab kev pabcuam zoo.

5.ISO9001, ISO 14001, OHSAS 18001 daim ntawv pov thawj.

6. Txais OEM hom,

7.Cov qauv pub dawb.

Kev taw qhia txog kev tsim khoom: Siv bauxite thiab charcoal (anthracite) ua raw khoom thiab fused nyob rau hauv kub kub nyob rau hauv ib tug hluav taws xob arc rauv. Cov tshuaj tseem ceeb yog Al2O3 thiab TiO2. Nws kuj muaj me me ntawm SiO2 thiab Fe2O3, thiab lwm yam. Lub microhardness yog 1800-2200kg/mm2. Lub toughness yog siab dua Silicon Carbide. Brown fused tuaj yeem ua kom zoo zoo refractory, thiab lwm yam. Lub refractoriness ntawm high-alumina clinker yog mus txog 1850 degree. Nws muaj zog chemical stability thiab lub cev zoo.

Raw Khoom: Tshawb nrhiav qhov chaw thiab muaj pes tsawg leeg ntawm Brown-Fused Alumina

Brown Fused Alumina (BFA) yog cov khoom ntom ntom thiab cov khoom siv tau los ntawm bauxite. Bauxite, thawj cov khoom siv raw, yog ib qho txhuas ore uas muaj feem ntau ntawm cov zaub mov gibbsite (Al (OH) 3), boehmite (-AlO (OH)), thiab diaspore (-AlO (OH)), tov nrog hlau oxides thiab Lwm yam impurities xws li silica thiab titania.

Cov txheej txheem pib nrog kev ua kom huv ntawm bauxite, qhov twg impurities raug tshem tawm los ntawm kev ntxuav thiab tshuaj ntsuam. Lub refined bauxite yog ces calcined ntawm kub kub los tsim alumina (Al2O3). Lub alumina yog tom qab fused hauv hluav taws xob arc rauv los tsim Brown Fused Alumina. Cov khoom kawg muaj txog 95% Al2O3, nrog me me ntawm hlau oxide (Fe2O3) thiab silica (SiO2).
