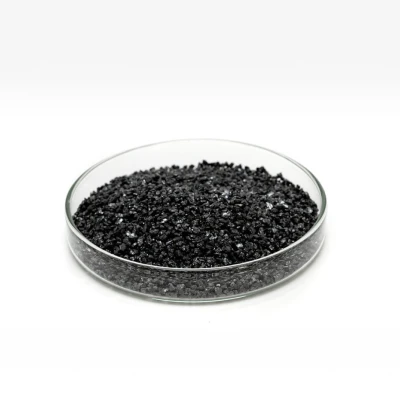

Dub Silicon Carbide
【Product specifications】: F8-F220 [Scope ntawm daim ntawv thov]: Nws yuav siv tau rau kev txiav thiab precision sib tsoo ntawm cov muaju, precision sib tsoo iav, hlais ntawm ib leeg siv lead ua silicon thiab polycrystalline silicon rods, precision sib tsoo ntawm ib leeg. Crystal silicon wafers, ua ntawm ...
【Product specifications】: F8-F220
[Scope ntawm daim ntawv thov]:Nws tuaj yeem siv rau kev txiav thiab kev sib tsoo ntawm cov muaju, kev sib tsoo ntawm cov iav nyuaj, hlais ntawm ib leeg siv lead ua silicon thiab polycrystalline silicon rods, precision sib tsoo ntawm ib leeg siv lead ua silicon wafers, ua cov hlau tawv tawv, cov ntaub ntawv mos xws li tooj liab thiab tooj liab. alloys, thiab lwm yam. Ua cov hlau zoo, ua kev sib raug zoo abrasives thiab coated abrasives; sib tsoo thiab polishing, thiab lwm yam.
【Product Description】:
Dub silicon carbide yog tsim los ntawm quartz xuab zeb thiab roj av coke ua cov ntaub ntawv tseem ceeb, thiab yog smelted ntawm qhov kub thiab txias nyob rau hauv lub qhov cub tsis kam. Nws yog siv lead ua dub, nkig thiab ntse, thiab muaj qee yam thermal thiab hluav taws xob conductivity. Cov duab microscopic yog hexagonal siv lead ua. Mohs hardness ntawm silicon carbide yog 9.3, microdensity hardness yog 2940--3300 kg/mm2, thiab Knoop hardness yog 2670-2815 kg/mm2. Nws yog siab dua corundum thiab thib ob tsuas yog pob zeb diamond hauv abrasives. , cubic boron nitride thiab boron carbide. Qhov ceev feem ntau suav hais tias yog 3.20-3.25 g / cm3. Lub ntuj packing ceev ntawm silicon carbide abrasives yog nyob nruab nrab ntawm 1.2--1.6 g/cm3, thiab lub ntiajteb txawj nqus yog 3.{15}}.25 g/cm3. ...
Dub silicon carbide yog tsim los ntawm quartz xuab zeb thiab roj av coke ua cov ntaub ntawv tseem ceeb, thiab yog smelted ntawm qhov kub thiab txias nyob rau hauv lub qhov cub tsis kam. Nws yog siv lead ua dub, nkig thiab ntse, thiab muaj qee yam thermal thiab hluav taws xob conductivity. Cov duab microscopic yog hexagonal siv lead ua. Mohs hardness ntawm silicon carbide yog 9.3, microdensity hardness yog 2940--3300 kg/mm2, thiab Knoop hardness yog 2670-2815 kg/mm2. Nws yog siab dua corundum thiab thib ob tsuas yog pob zeb diamond hauv abrasives. , cubic boron nitride thiab boron carbide. Qhov ceev feem ntau suav hais tias yog 3.20-3.25 g / cm3. Lub ntuj packing ceev ntawm silicon carbide abrasives yog nyob nruab nrab ntawm 1.2--1.6 g/cm3, thiab lub ntiajteb txawj nqus yog 3.{15}}.25 g/cm3.
Daim ntawv thov Scope
Kev siv tseem ceeb: Nws tuaj yeem siv rau kev txiav thiab kev sib tsoo ntawm cov muaju, kev sib tsoo ntawm cov iav nyuaj, hlais ib leeg siv lead ua silicon thiab polycrystalline silicon rods, precision sib tsoo ntawm ib leeg siv lead ua silicon wafers, ua cov hlau superhard, thiab cov hlau mos xws li tooj liab. thiab tooj liab alloys. Kev ua, ua kev sib raug zoo abrasives thiab coated abrasives; sib tsoo thiab polishing, thiab lwm yam.
Technical Parameters
| Particle loj faib (micron) | Chemical indicators | Lub cev ntsuas | |||||||
| Granularity naj npawb | D3 max | Qhov nruab nrab particle loj D50 | Yam tsawg kawg particle loj D94 | SiC Ntau dua lossis sib npaug rau (%) | Fe2O3 Tsawg dua lossis sib npaug rau (%) | F•C Tsawg dua lossis sib npaug rau (%) | tus nqi pH | Qhov ntom ntom | Sib nqus cov ntsiab lus Tsawg dua los yog sib npaug rau (%) |
| BC#800 | Tsawg dua los yog sib npaug rau 20.0 | 14.0±1.0 | Ntau dua lossis sib npaug rau 9.0 | Ntau dua lossis sib npaug rau 95.00 | 1.2 | 0.4 | 6--8 | 1.18 | 0.008 |
| BC#1000 | Tsawg dua los yog sib npaug rau 18.3 | 11.5±1.0 | Ntau dua lossis sib npaug rau 7.0 | Ntau dua lossis sib npaug rau 93.50 | 1.2 | 0.4 | 6--8 | 1.15 | 0.008 |
| BC#1200 | Tsawg dua lossis sib npaug li 17.5 | 9.5±0.8 | Ntau dua lossis sib npaug li 5.5 | Ntau dua lossis sib npaug rau 93.50 | 1.2 | 0.4 | 6--8 | 1.13 | 0.005 |
| BC #1500 | Tsawg dua lossis sib npaug li 14.5 | 8.0±0.6 | Ntau dua lossis sib npaug rau 4.5 | Ntau dua lossis sib npaug rau 93.00 | 1.2 | 0.4 | 6--8 | 1.12 | 0.005 |
| BC#1800 | Tsawg dua lossis sib npaug li 13.5 | 7.0±0.6 | Ntau dua lossis sib npaug rau 4.2 | Ntau dua lossis sib npaug rau 93.00 | 1.2 | 0.4 | 6--8 | 1.05 | 0.005 |
| BC#2000 | Tsawg dua lossis sib npaug rau 13.0 | 6.7±0.6 | Ntau dua lossis sib npaug rau 4.0 | Ntau dua lossis sib npaug rau 93.00 | 1.2 | 0.4 | 6--8 | 1.00 | 0.005 |
Cim npe nrov: Tuam Tshoj dub silicon carbide manufacturers, lwm tus neeg
