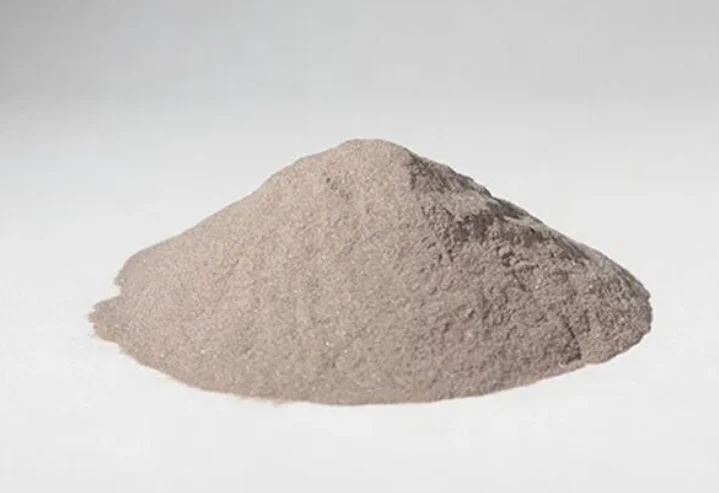

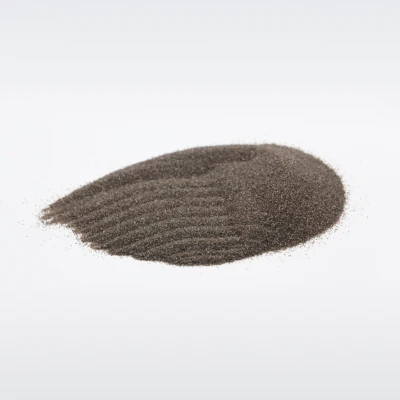

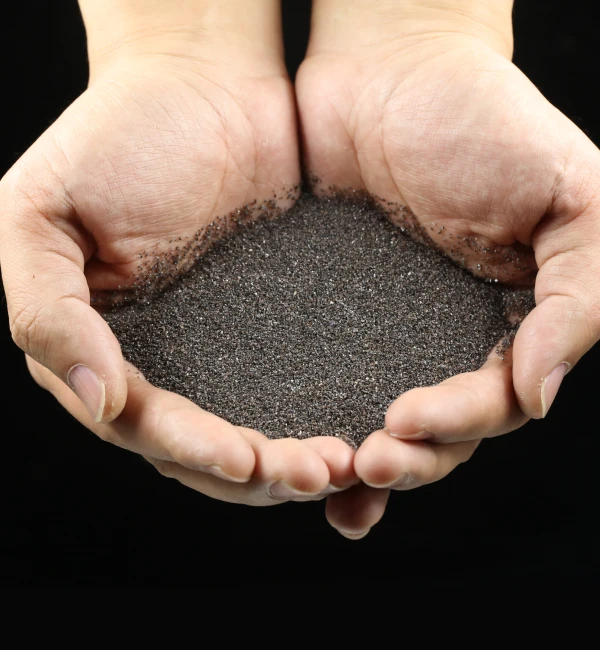

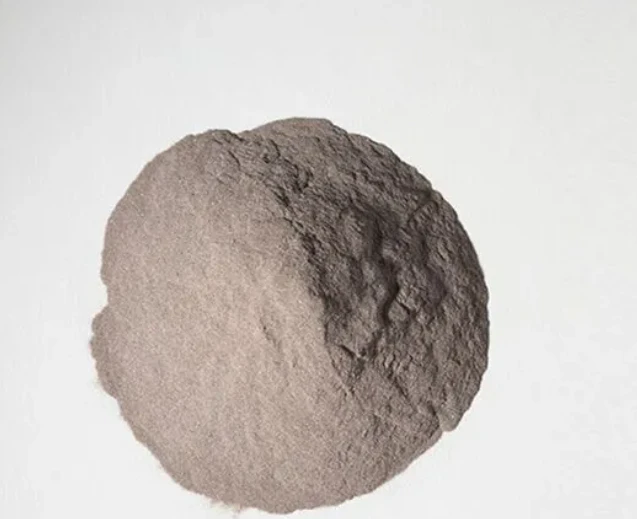

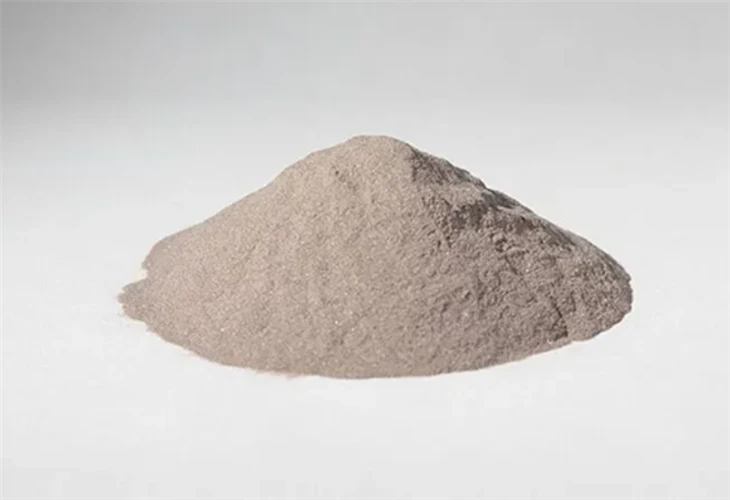

Xim av fused alumina micro hmoov
Precision Abrasive daws rau cov kev sib tsoo superfine, polishing thiab lapping daim ntawv thov. Muaj kev faib tawm loj me me rau qhov chaw zoo tshaj plaws.
Kev ua haujlwm zoo dua hauv cov ntawv thov precision
Peb lub ntsej muag daj alumina micro hmoov muab cov txiaj ntsig zoo tshaj plaws hauv kev ua haujlwm zoo tshaj plaws
Precise particle loj
Micron micron -} qhov me me faib nrog kev faib tawm nqaim rau kev paub tseeb, rov ua tiav cov txiaj ntsig zoo.
01
Siab huv
Al₂o₃ cov ntsiab lus tshaj li 95% ua kom muaj txiaj ntsig zoo rau kev txiav cov kev ua tau zoo thiab kev sib kis tau tsawg.
02
Ceev Txiav Tes Ua
Ntse, block ca puab puab muab txhoj puab heev thaum tswj cov khoom zoo.
03
Zoo ib yam zoo
Kev tswj kom nruj zoo tswj kom ua kom zoo nkauj - rau - batch xwm txheej rau koj cov txheej txheem ntau lawm.
04
Kev Ua Tshwj Xeeb
| Tshuaj lom neeg tshuaj lom neeg (Al₂o₃) | Ntau dua los yog sib npaug rau 95% |
| MoHS Hardness | 9.0 |
| Particle picat | Angular, thaiv |
| Cov qauv qhov ntau thiab tsawg | W63, W50, W40, W28, W20, W14, W10, W7, W5, W3.5, W2.5, W1.5, W1.0, W0.5 |
| Xim | Tsaus xim av |
| Melting taw tes | 2050 degree |
Cov Ntawv Thov
Precision Lapping
Cheebtsam Optical
Semiconductor wafers
Tag nrho cov kev thaiv
Phab Hlau Cheebtsam

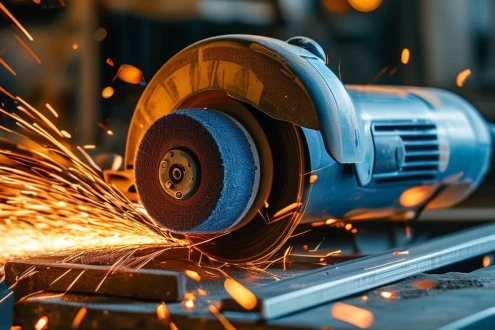

Superfine Sib Tsoo
Tej hub

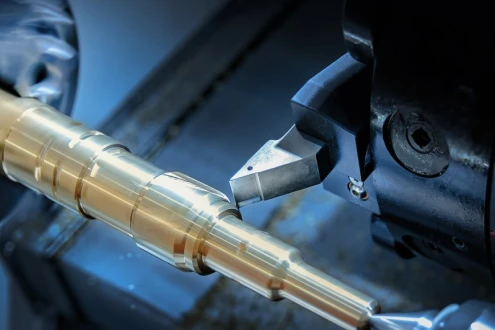

Hardened Steel Qhov Chaw
Tungsten carbide cov cuab yeej
Iav thiab quartz
Polishing tebchaw
Hlau Polishing Paines
Vibratory Tinishing
Buffing tebchaw
Pob zeb diamond Tool Hnav ris tsho
Grit Loj Xaiv Xaiv
Xaiv txoj cai micron sab xis rau koj cov kev thov tshwj xeeb
| Micron loj | Fepa Kev Tsim Qauv | Cov Kev Siv Raug Raug |
Nto tas(RA μm) |
| 53-63 μm | W63 | Ntxhib lapping, npaj tshem tawm | 0.8-1.2 |
| 40-53 μm | W50 | Lub Hom Phiaj Dav Lapping | 0.5-0.8 |
| 28-40 μm | W40 | Kev sib tsoo zoo, ua ntej -} polishing | 0.3-0.5 |
| 20-28 μm | W28 | Precision Lapping | 0.2-0.3 |
| 14-20 μm | W20 | Nplua nplua polishing | 0.1-0.2 |
| 10-14 μm | W14 | Ultra - zoo polishing | 0.05-0.1 |
| 7-10 μm | W10 | Ceev superfinishing | 0.03-0.05 |
| 5-7 μm | W7 | Daim iav Xov Xwm | 0.02-0.03 |
Tsis paub meej txog txoj cai grit loj rau koj daim ntawv thov? Tham nrog peb pab neeg ua haujlwm.
Vim li cas thiaj xaiv NYTWO micro hmoov?
Nrog ntau dua 30 xyoo ntawm kev paub hauv abrasive manufacturing, peb xa zoo koj tuaj yeem ntseeg tau
30+
Xyoo Kev Kawm
Tshwj xeeb hauv Abrasive Raug Txij Nkawm Txij Nkawm Txij Nkawm
ISO9001
Cov ntawv pov thawj zoo
Nruj tib yam tswj thoob plaws cov txheej txheem ntau lawm
5000+
Tons Tons Muaj Peev Xwm
Txhim khu kev qha ua rau ob qho tib si kev txiav txim me me thiab loj loj

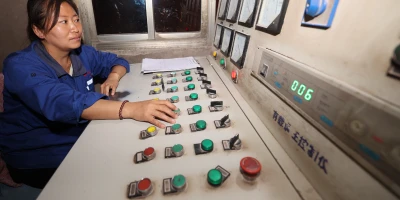

Peb Cov Txheej Txheem Tswjhwm Zoo
0 1

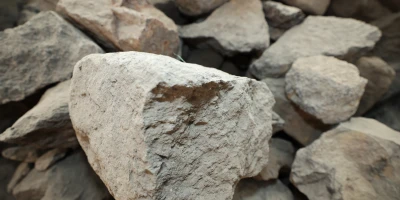

Kev Tshuaj Xyuas Raw Raw
02

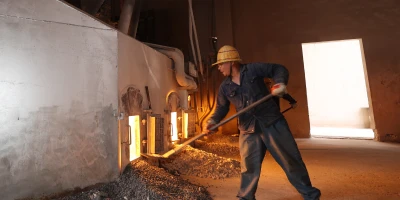

Fais arc rauv fusion
03
CRUSHING & MILLING
04
Qauv Qhia Txog Kev Kawm
05
Sib cais sib nqus
06

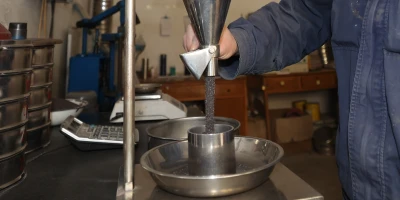

Kev tsom xam me me
07

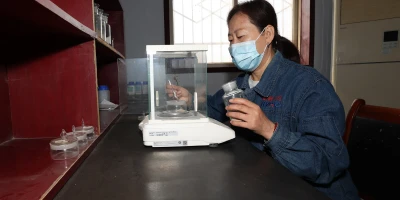

Cov Txheeb Xyuas Zoo
08

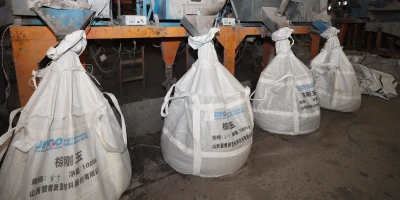

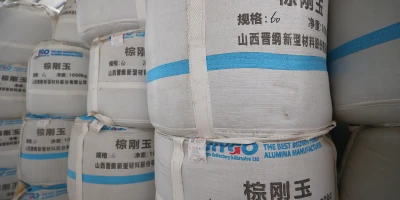

Ntim & Xa Khoom
Cov qhua tuaj noj mov
Dab tsi peb cov neeg tau hais txog peb lub ntsej muag daj alumina micro
Tus tub rog
Precision Optics Chaw tsim tshuaj paus, lub teb chaws Yelemees
Sophia
Khoom siv hluav taws xob tivthaiv tiv thaiv hluav taws xob, Nyiv
Michael
Automotive Qhov Chaw Tsim Tshuaj, Tebchaws USA
Npaj kom txhij los txhim kho koj cov txheej txheem ua ntej tiav?
Tiv tauj peb rau hnub no rau kev sab laj tswv yim, nqe kwv yees lossis thov kom kuaj cov qauv rau kev sim
Hu rau peb cov kws paub, Hais lus ncaj qha nrog peb pab neeg ua haujlwm, +86 15035473111
Thov Tso Cai, Tau txais cov ncauj lus kom ntxaws cov ntaub ntawv, xa kev nug
Cov Qauv Dawb, Sim peb cov hmoov micro hauv koj daim ntawv thov, thov cov qauv
